At a Glance: Quick release steering wheels are specialized racing components that allow drivers to rapidly remove and attach steering wheels using a hub-based locking mechanism. They come in various types, including 3-bolt, 6-bolt, and hex-drive systems, each offering different benefits for racing applications.

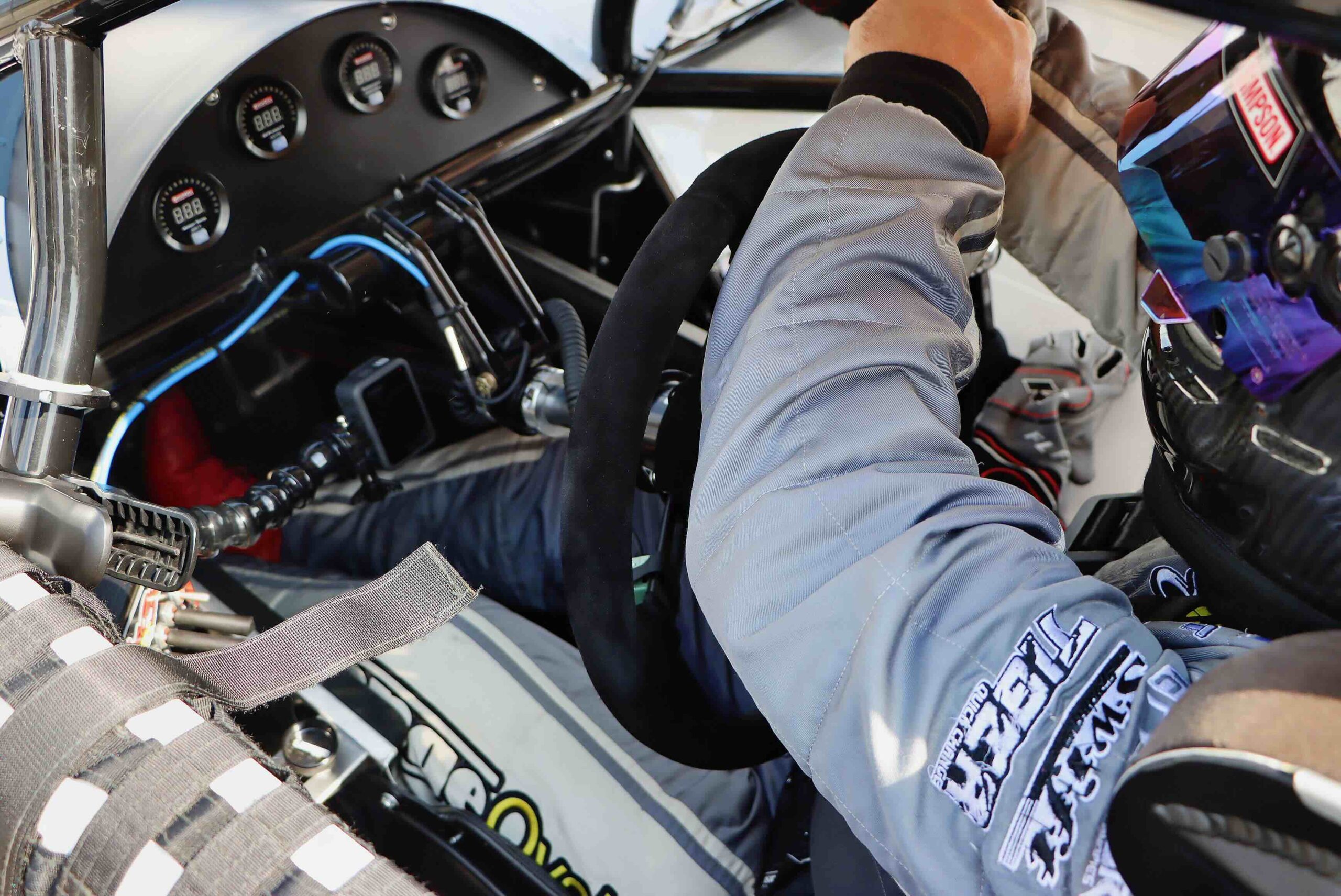

Quick release steering wheels allow race car drivers to have precise steering control during high-speed competition. These specialized wheels feature quick release mechanisms that allow drivers to smoothly enter and exit their vehicles and quickly evacuate during an emergency.
Each quick release steering wheel available for racing applications has different installation requirements and is used for different types of racing. specific use cases. These specific components are influenced by different racing disciplines, mounting systems, and safety standards. Whether you’re new to racing or looking to upgrade your current setup, find the wheel that best matches your racing needs.
Common Quick Release Mechanisms

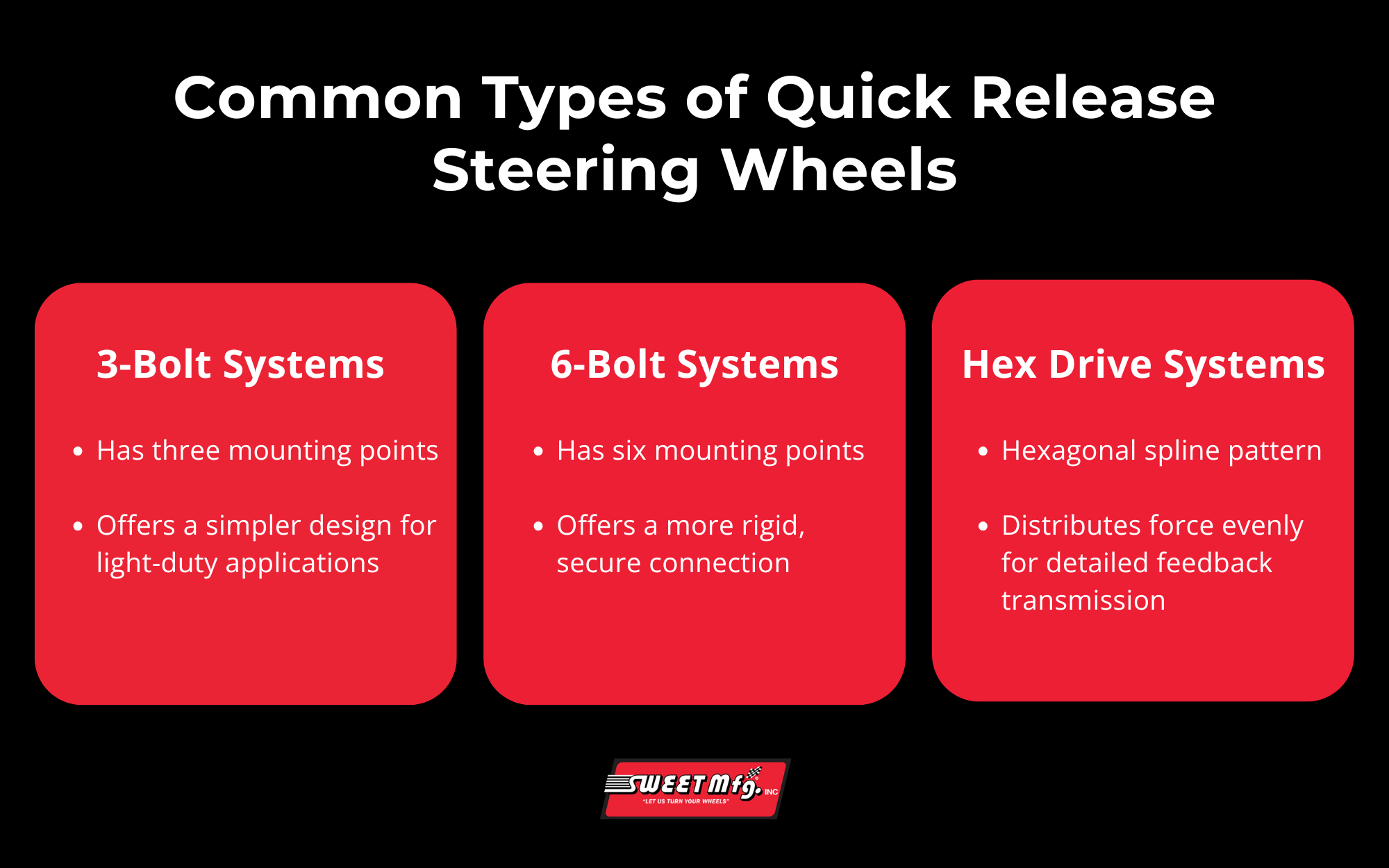

The racing industry relies on three primary quick release mechanisms for competition steering wheels: the 3-bolt, 6-bolt, and hex-drive systems. Each design offers specific benefits for different racing applications.
3-Bolt System
The 3-bolt quick release uses a triangular bolt pattern with three mounting points spaced 120 degrees apart. Installation involves aligning the hub’s bolt pattern with the steering wheel’s matching points, then securing with grade 8 bolts. The mechanism allows for rapid wheel removal, which proves useful during driver changes in endurance racing.
6-Bolt System
Race teams competing in professional series often opt for 6-bolt quick release mechanisms because this design doubles the mounting points of the 3-bolt system, creating a more rigid connection between the steering wheel and column.
Hex-Drive Systems
Instead of bolts, a hex system design uses a hexagonal post to slide the wheel onto the hub and secure it with a locking ring. This hexagonal spline pattern distributes force across multiple contact points, offering the ability to transmit precise, detailed feedback through the steering column to the driver’s hands.
Racing-Specific Steering Wheel Features
Racing quick release steering wheels incorporate locking mechanisms that protect drivers during high-speed competition. These sophisticated safety systems use precision-engineered splines and pins that prevent any unwanted movement once engaged. Modern quick release hubs feature dual-action locking systems with precision-engineered splines and pins that prevent any unwanted movement. These systems include-
- A primary mechanism secures the wheel during normal operation
- A secondary backup prevents accidental release during impacts
- Anti-rotation pins align with matching holes in the hub that eliminate any possibility of the wheel rotating independently
The emergency release function allows drivers to remove the steering wheel in under a second, which proves invaluable during emergency exits. A single pull motion disengages all locking mechanisms, letting drivers quickly escape if needed.The release mechanism is positioned to prevent accidental activation so that the rapid removal capability doesn’t compromise security during racing.
Materials
Material selection plays a major role in both performance and durability.
- Aluminum: These options provide an excellent balance of strength and weight savings. Titanium: These variants shed additional ounces while maintaining structural integrity for maximum weight reduction.
- Composite Materials: These use carbon fiber construction to achieve the ultimate combination of rigidity and light weight.
Each material choice offers distinct advantages – aluminum for cost-effective performance, titanium for weight savings, and composites for maximum strength-to-weight ratio.
Quick Release Benefits

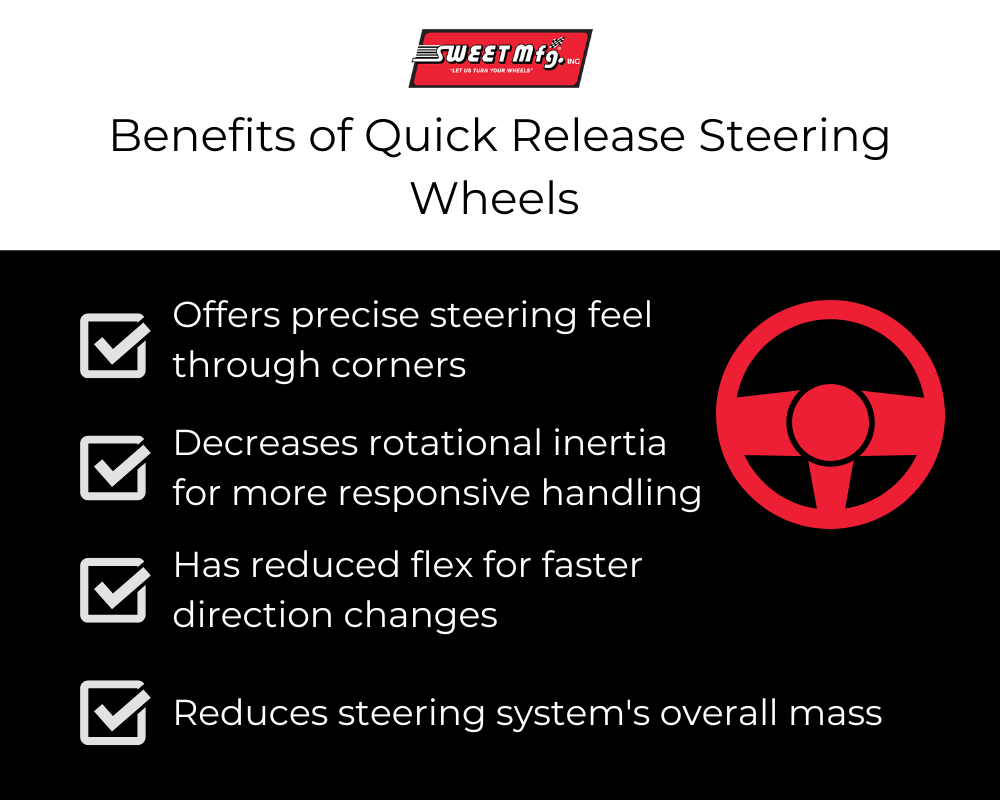

The performance advantages of quick release systems extend beyond safety. By reducing the steering system’s overall mass, these wheels reduce rotational inertia for more responsive handling. The direct mounting method transmits road feedback with exceptional clarity, giving drivers precise steering feel through corners. The reduced flex compared to standard wheels results in faster direction changes and better control during aggressive maneuvers.
Installation and Compatibility
The installation process for quick release steering wheels depends heavily on your specific racing setup and vehicle type.
Steering Wheel Hub Requirements

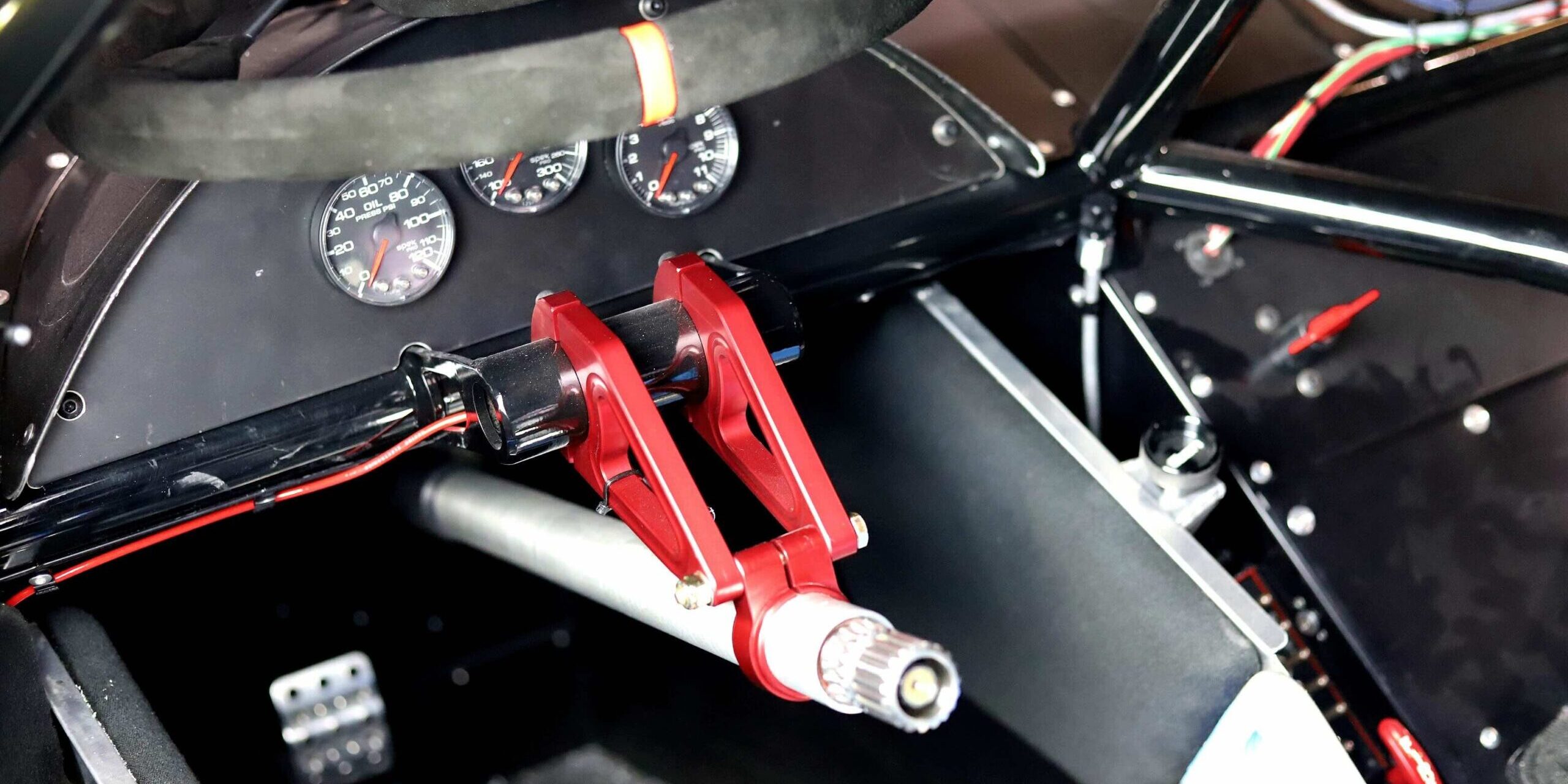

Quick release hubs come in two main components: the fixed hub mount and the detachable wheel-side mechanism. The spline shaft interfaces must match exactly between your steering column and hub assembly to maintain proper function and safety.
Vehicle-Specific Considerations
Different racing categories have varying regulations for steering wheel mounting. Formula-style cars typically use shorter hub adapters compared to GT or stock car applications. Most modern racing quick release systems include channels for wheel-mounted controls, requiring proper routing of electrical connections through the hub assembly. Professional racing series often mandate specific mounting standards and safety features.
- For oval track racing, hexagonal quick release systems provide maximum stability and rapid wheel removal.
- Sprint car drivers will benefit from 3-bolt quick release design, offering reliable performance in high-vibration conditions.
- For road course racing, consider spline drive quick release steering wheels, engineered for precise feedback and durability.
Professional Installation Steps
- Mount the fixed hub using manufacturer-specified torque values, typically between 30-45 ft-lbs for main shaft nuts
- Secure the fixed hub, install electrical connectors if applicable
- Attach the quick release collar, and test the locking mechanism
- Before track use, verify the quick release engages fully with an audible click and shows zero play when locked
- Professional installation should include testing the wheel through full rotation to confirm proper clearance and function
Explore Steering Wheels for Racing at Sweet Manufacturing
Quick release steering wheels offer a perfect blend of functionality and safety to amateur motorsport enthusiasts and professional racers alike. From basic 3-bolt designs to advanced hex-drive systems, each type serves specific racing applications while maintaining the highest safety standards.
At Sweet Manufacturing, we offer professional-grade racing components for seamless integration with your vehicle. Find different styles of steering wheels, quick release hubs, and more American-made race car parts in our extensive inventory. We’re here to help you find the perfect products to elevate your specific driving experience, no matter what your goals are.
